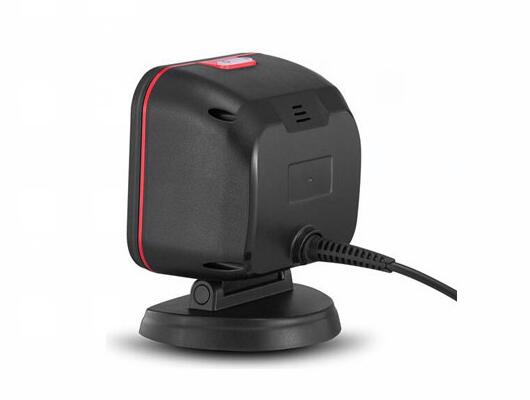

1.3MP Omnidirectional RS232 USB 2D 1D Bar code reader platform desktop scanner – ACPS802D
Product Feature
- Compatible with Linux, Android, Windows XP,7,8,10,MAC
- Switch to read only 1D code, to prevent misreading adjacent 2D code
- Read the coated barcode and mobile phone payment code smoothly
- Quick and accurate reading of universal 1D & 2D code
- Ultra wide scan wide angle and ultra far reading distance
- Soft color fills the light, does not hurt the eye
Specification
Performance Parameters | |
Image Sensor: | SXGA-W (Width1280*high1024) Ratio(5: 4) |
Supported Symbologies: | 1D: EAN-8, EAN-13, EAN-132add-on, EAN-135add-on, ISSN, ISBN, UPC-A, UPC-E, Code11, Code32, Code39, Code93, Code128, Codabar, Industrial 2 of 5, Interleaved2 of 5, Matrix 2 of 5, ISBT-128, GS1-128, GS1DataBar(RSS14), GS1DataBarLimited, GS1DataBarExpanded.
2D: PDF417, MicroPDF417, QR-code, MicroQR, DataMatrix, QR, Aztec, etc. |
Scan Range: | 5mil(Code39) 1cm~15cm; UPC 13mil 1cm~33cm; 20mil(code39) 1cm~40cm; 20mil(QR Code) 1cm~28cm |
System compatibility: | Linux、Android、 WindowsXP、 7、8、10、 MAC |
Minimum recognition accuracy: | Code 39 4mil |
Motion tolerance: | 3.8meters/second |
Scan Mode: | Continuous Scanning |
Print contrast: | 20% |
Scan Angle: | Turn +360°, Elevation +60°, Declination +70° |
Interface: | Led: Blue light: blue light flashes the code reading prompt, blue light power indicator Red light: turn off the QR code reading function; Beeper: Startup prompts, reading tips Key: switch three tones; 1D code switch |
Interface: | USB(Drive-Free), RS232, USB-COM |
Barcode Type: | Paper, Thinfilm1D/2D; 1D/2Dbarcodeonmobilephone, tabletscreen |
Support Keyboard: | Support Multi-Language |
Barcode Output Editing: | Support Prefix & Suffix |
Electrical Parameters | |
Voltage: | DC5V±5% |
Operating Current: | Standby current 180mA; Working current 210mA. |
Physical Parameters | |
Dimensions | 118mm*95mm* 144.4mm |
Material | ABS+PC |
Cable | 2 M |
Weight: | 390g |
Environmental Parameters | |
Operating Temperature | -20℃~+55℃ |
Storage Temperature | -20℃~+60℃ |
Relative Humidity | 5%~95% RH(Non-condensing) |
Ambient lighting | 0~700000LUX |
Drop/Shock Resistance | Withstands multiple times 1.5 meters drops to concrete |
Product Specifications (PDF Download Available):
1.3MP Omnidirectional RS232 USB 2D 1D Bar code reader platform desktop scanner – ACPS802D, Biometric fingerprint finger print sensor reader embedded module
Download Link : https://www.aico-electronics.com/wp-content/uploads/2022/01/ACPS802D.pdf
