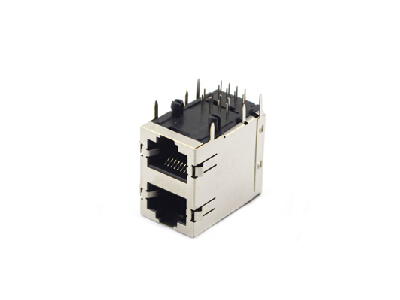

Right angle 8p8c 2×1 Rj45 pcb jack with shield, E59C07083116 (Free Sample)

BACK
CONTACT US TODAY

Technical Parameters:

Electrical
Current Rating: 1.5  AMPS @25℃
Voltage Rating: 125VAC
Insulation R: 1000MΩ Min. @500V DC
Withstand Voltage: 1000 V AC RMS or 1500 V DC @ 0.5mA 50Hz/60Hz 1 M
Contact Resistance: 35~50 mΩ Max

Mechanical
Mating/Unmating Force: 22N/2.27kg Max
Retention Strength: 57.83N or 30N Min
Durability: 750 Mating Cycles Min

Material
Housing: (1) ABS Resin (UL 94V-0); (2) Glass Filled PBT (UL 94V-0); (3) PA + GF (UL 94V-0)
Spring Wire: (1) 0.45mm DIA Phosphor Bronze Gold Plating over Nickel; (2) 0.35mm Thickness Phosphor Bronze Alloy Selective Gold Plating over Nickel.
Gold Plating: Gold Flash 3u inch, 6u inch, 15u inch, 30u inch, 50u inch

Working temperature
-40℃ ~ +85℃/-20℃ ~ +70℃  (PC, ABS)

Product Drawing (PDF Download Available):

Right angle 8p8c 2×1 Rj45 pcb jack with shield rj45 jack, E59C07083116

Download Link : https://www.aico-electronics.com/wp-content/uploads/2016/05/AICO-Right-angle-8p8c-2x1-Rj45-pcb-jack-with-shield-drawing-E59C07083116.pdf
