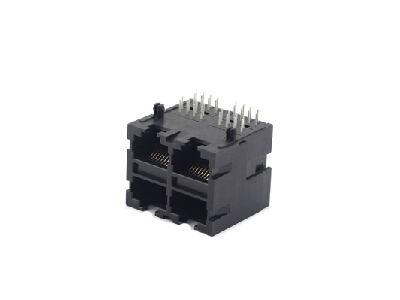

90 degree 8P8C rj45 ethernet connector 2×2 PCB jack, E59L09071601 (Free Sample)

BACK
CONTACT US TODAY

Technical Parameters:

Electrical
Current Rating: 1.5  AMP
Voltage Rating: 125VAC RMS
Insulation Resistance: 1000 Megohms Min. @ 500V DC
Dielectric Strength: 1000 V AC or 1500 V DC RMS
Contact Resistance: 20~50 mΩ Max

Mechanical
Retention Strength: 50N for 60S +- 5S
Retention Strength: 57.83N or 30N Min
Operating Life: 750 Cycles Min

Material
Housing Instert Material:  see table UL94V-0
Spring Wire: (1) 0.45mm DIA Phosphor Bronze Gold Plating over Nickel; (2) 0.35mm Thickness Phosphor Bronze Alloy Selective Gold Plating over Nickel.
Shielding: 0.20mm Thickness Copper Alloy with Nickel Plated or SUS
Gold Plating: Gold Flash 3u inch, 6u inch, 15u inch, 30u inch, 50u inch

Working temperature
-40℃~+85℃/-20℃~+70℃   Relative humidity <80%

Product Drawing (PDF Download Available):

90 degree 8P8C rj45 ethernet connector 2×2 PCB jack, E59L09071601

Download Link : https://www.aico-electronics.com/wp-content/uploads/2016/05/AICO-90-degree-8P8C-rj45-ethernet-connector-2x2-PCB-jack-drawing-E59L09071601.pdf
